Description

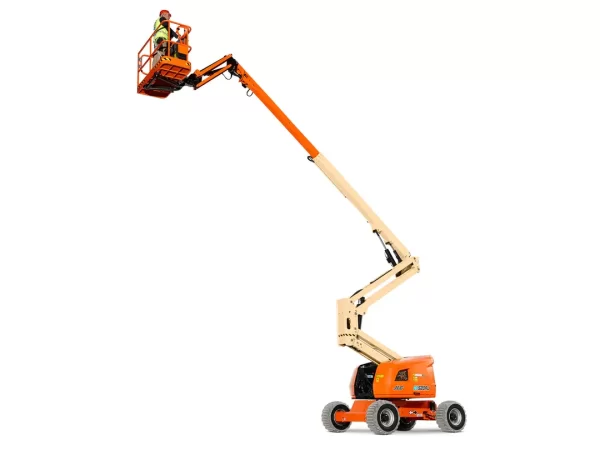

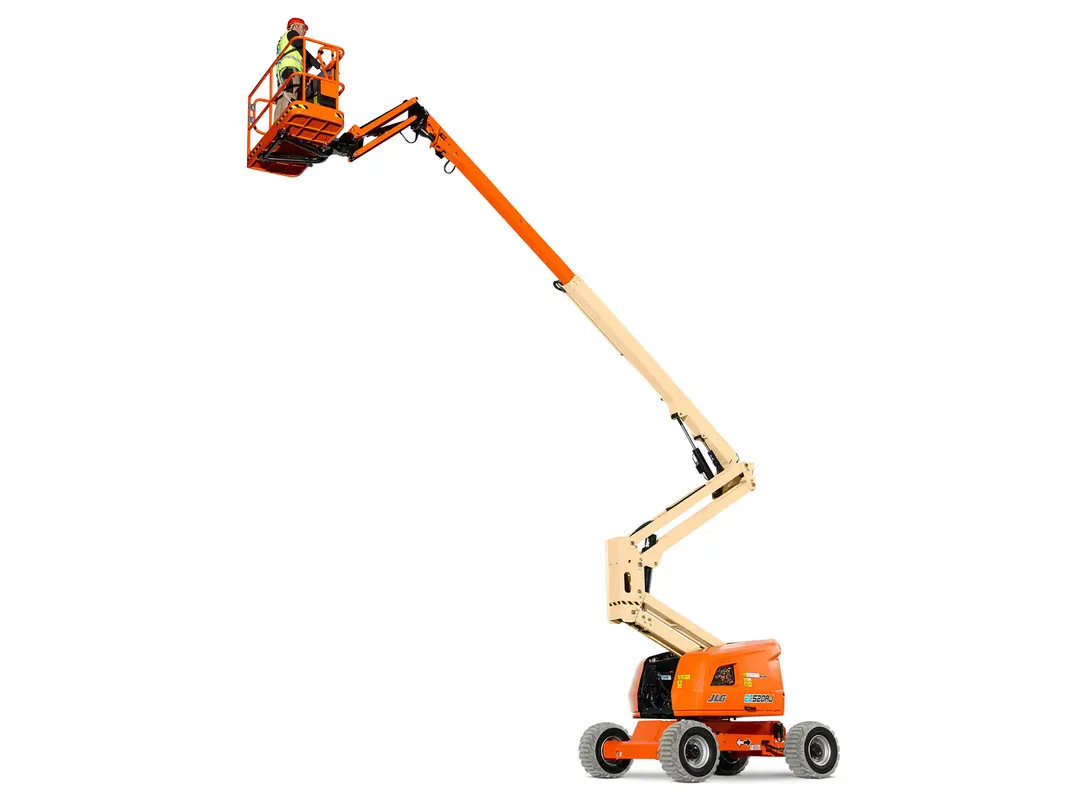

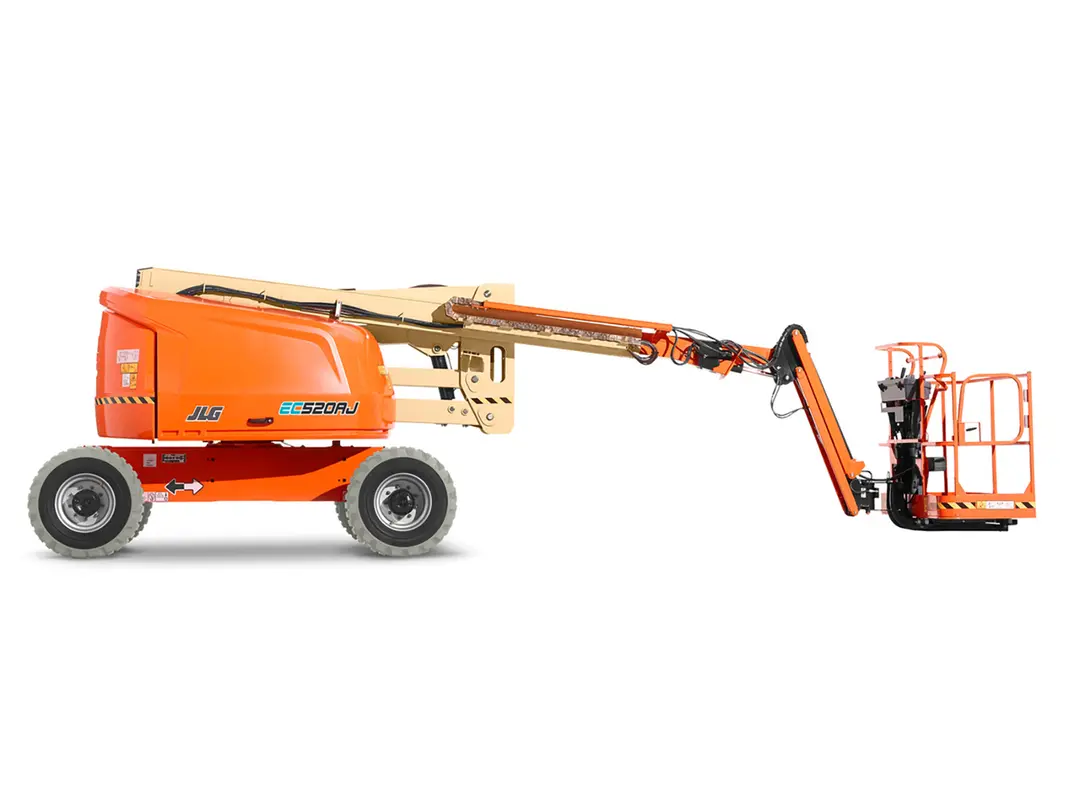

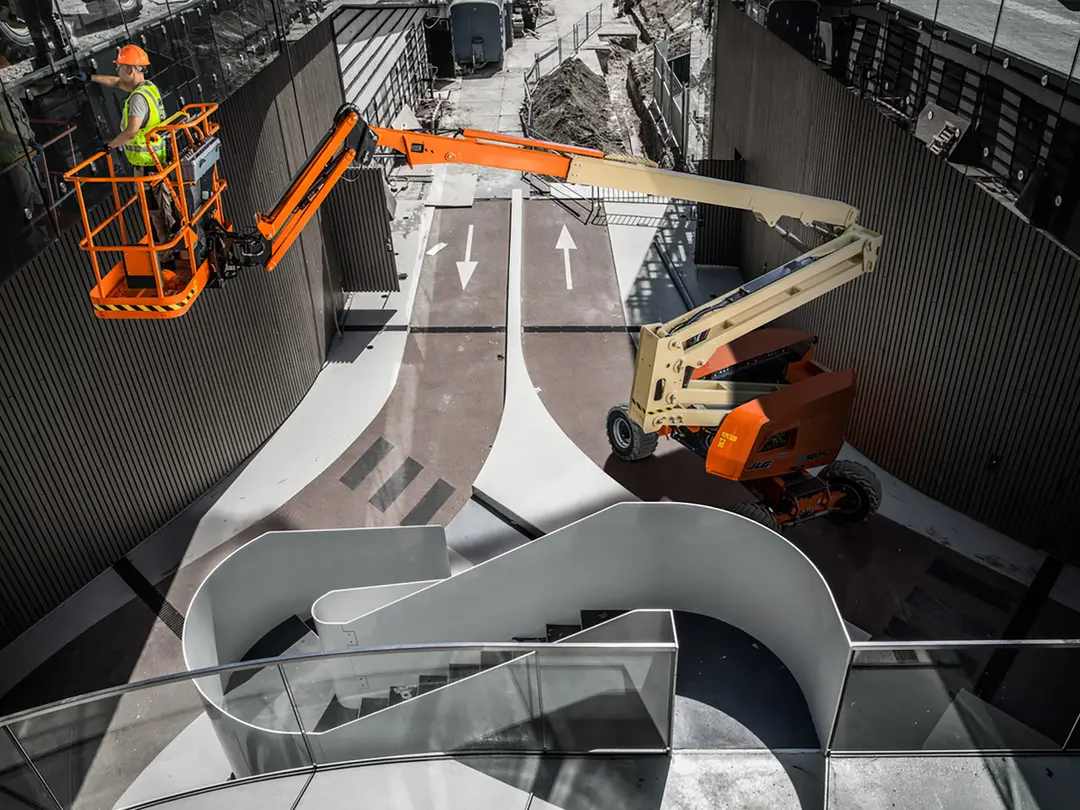

The JLG EC520AJ is a cutting-edge, fully electric articulating boom lift engineered to meet the demands of modern construction and maintenance environments where emissions, noise, and indoor compatibility are critical concerns. Offering a robust combination of power, reach, and eco-conscious performance, the EC520AJ is ideal for both indoor and outdoor job sites, including warehouses, shopping centres, data centres, and construction zones in urban areas.
Equipped with a 48V lithium-ion battery system, the EC520AJ provides fast-charging capabilities, long runtime, and consistent power delivery—even in colder climates, thanks to its built-in battery heaters. Its articulated boom design offers excellent up-and-over access, while the compact chassis and zero emissions make it highly suitable for sensitive or enclosed environments.
Key Specifications:
-
Working Height: 18.0 m
-
Platform Height: 16.0 m
-
Horizontal Outreach: 10.65 m
-
Up and Over Clearance: 7.30 m
-
Unrestricted Platform Capacity: 250 kg
-
Machine Width: 2.35 m
-
Machine Length: 7.77 m
-
Stowed Height: 2.27 m
-
Weight: Approx. 7,985 kg
-
Drive Speed: Up to 5 km/h
-
Gradeability: 30%
-
Turning Radius (Inside/Outside): 2.06 m / 4.78 m
-
Power Source: 48V Lithium-Ion batteries with integrated heaters
-
Recharge Time: 30% in 1 hour; full recharge in under 4 hours
-
Swing: 355° non-continuous
-
Tyres: Non-marking, ideal for indoor use
Key Features:
-
All-Electric Operation: Zero emissions for compliance with indoor air quality standards and urban regulations
-
Lithium-Ion Battery System: Fast-charging and long runtime with minimal maintenance
-
Built-in Battery Heaters: Reliable performance in cold-weather conditions
-
Quiet Operation: Suitable for noise-sensitive environments such as hospitals and schools
-
Articulating Boom: Allows for up-and-over reach to access hard-to-reach areas
-
Non-Marking Tyres: Prevent floor damage on delicate surfaces
-
Compact Footprint: Maneuvers easily through tight spaces and narrow aisles
-
Zero Tailswing: Reduces risk of damage in confined work zones
-
High Platform Capacity: 250 kg unrestricted load supports two workers and tools
-
Enhanced Safety: Integrated safety systems and solid stability on uneven terrain
-
Environmentally Friendly: Meets sustainability requirements on modern job sites
The JLG EC520AJ represents a new generation of boom lifts—balancing performance, sustainability, and advanced technology to deliver maximum efficiency without compromising safety or access.
